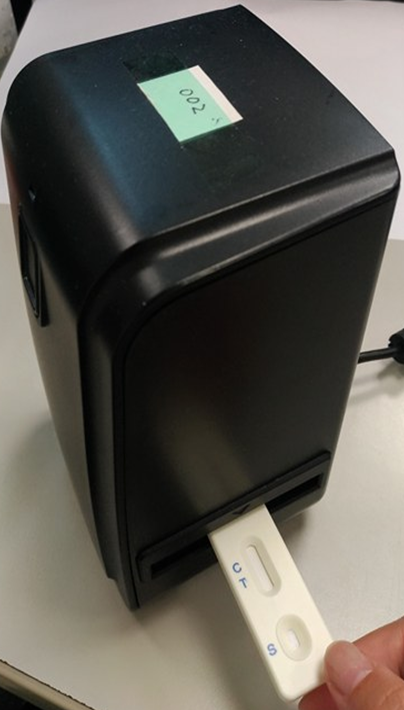

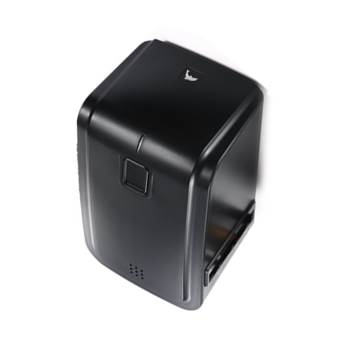

Products: RapidScan Rapid Test Scanner



‧Features

• Professional performance for qualitative/

  semi-quantitative measurement

• Excellent resolution for rapid test signals

• Intuitive report format for data output

• Fast and precise, avoid misjudging

• Convenient and easy operation

• Dimension customization available for rapid test

  cassette



















‧Process Chart

‧Available For

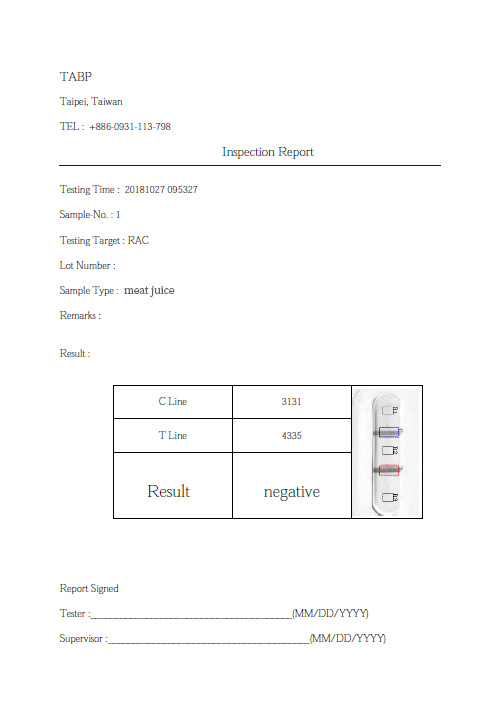

‧The values of the signal intensity and a photo of  the test are provided as a result.













‧Specification

Specification
Optical resolution  Up to 1800 dpi
Image Sensor  5 Megapixels CMOS
Light Source White light or UV (365nm)
Scanning Media Rapid test, signal in colorimetric or fluorescent format
Interface USB 2.0 ONLY (USB 1.1 not supported)
Application Software Included
Supported System Windows XP, Vista, and Win 7; MacOS 10.4 and Later
Power 5V, 280 mA via host USB port
Certification CE
RoHS Compliance Yes
